2N6513 Transistor
Marke
Diverse Hersteller

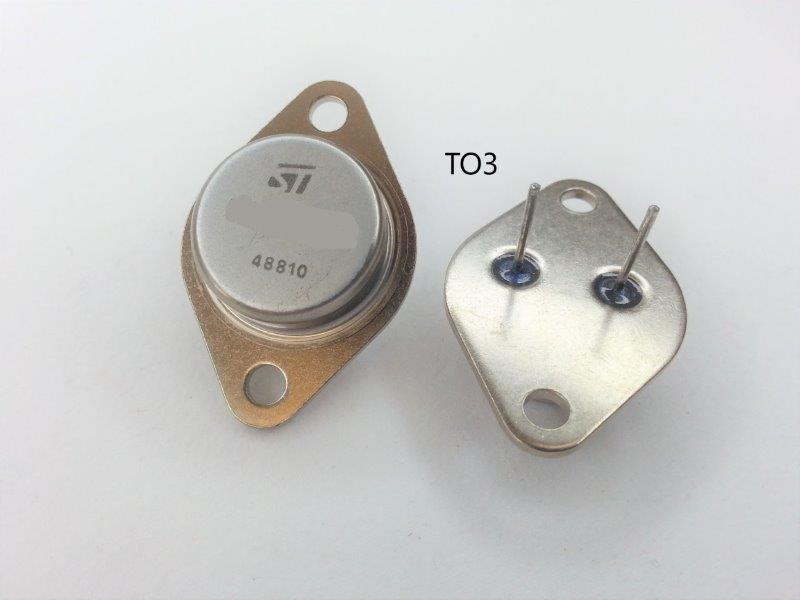

Form TO3
Form TO3
POWER TRANSISTOR
Maximum Collector Power Dissipation (Pc): 120 W
Maximum Collector-Base Voltage |Vcb|: 400 V
Maximum Collector-Emitter Voltage |Vce|: 350 V
Maximum Emitter-Base Voltage |Veb|: 6 V
Maximum Collector Current |Ic max|: 7 A
Max. Operating Junction Temperature (Tj): 200 °C
Transition Frequency (ft): 3 MHz
Collector Capacitance (Cc): 200 pF
Forward Current Transfer Ratio (hFE), MIN: 10
