2SB337 Transistor
Marke
Hitachi

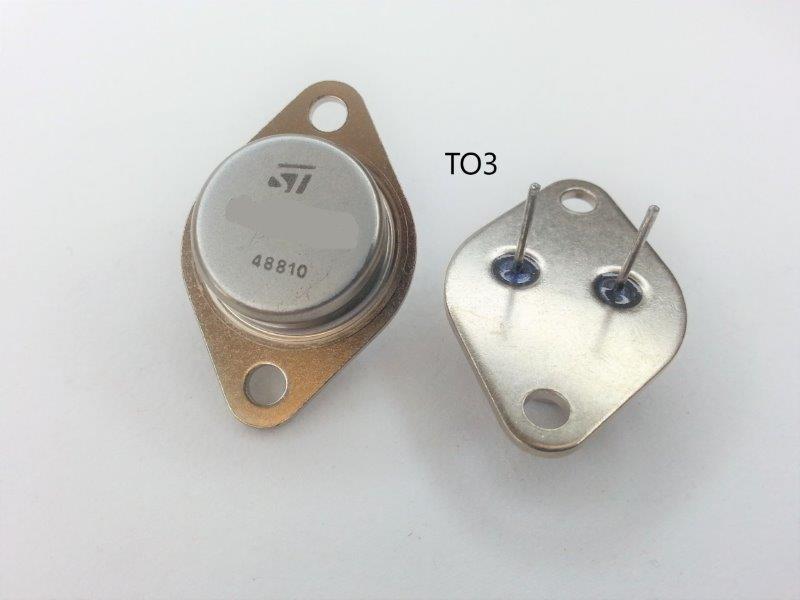

Form TO3
Form TO3
POWER TRANSISTOR
Maximum Collector Power Dissipation (Pc): 12 W
Maximum Collector-Base Voltage |Vcb|: 40 V
Maximum Collector-Emitter Voltage |Vce|: 30 V
Maximum Emitter-Base Voltage |Veb|: 1 V
Maximum Collector Current |Ic max|: 7 A
Max. Operating Junction Temperature (Tj): 90 °C
Transition Frequency (ft): 0.125 MHz
Forward Current Transfer Ratio (hFE), MIN: 50
Maximum Collector Power Dissipation (Pc): 12 W
Maximum Collector-Base Voltage |Vcb|: 40 V
Maximum Collector-Emitter Voltage |Vce|: 30 V
Maximum Emitter-Base Voltage |Veb|: 1 V
Maximum Collector Current |Ic max|: 7 A
Max. Operating Junction Temperature (Tj): 90 °C
Transition Frequency (ft): 0.125 MHz
Forward Current Transfer Ratio (hFE), MIN: 50
