2SC901A Transistor

   Type Designator: 2SC901A
   Material of Transistor: Si
   Polarity: NPN
   Maximum Collector Power Dissipation (Pc): 50 W
   Maximum Collector-Base Voltage |Vcb|: 250 V
   Maximum Collector-Emitter Voltage |Vce|: 200 V
   Maximum Emitter-Base Voltage |Veb|: 6 V
   Maximum Collector Current |Ic max|: 5 A
   Max. Operating Junction Temperature (Tj): 150 °C
   Transition Frequency (ft): 25 MHz
   Forward Current Transfer Ratio (hFE), MIN: 14
   Noise Figure, dB: -

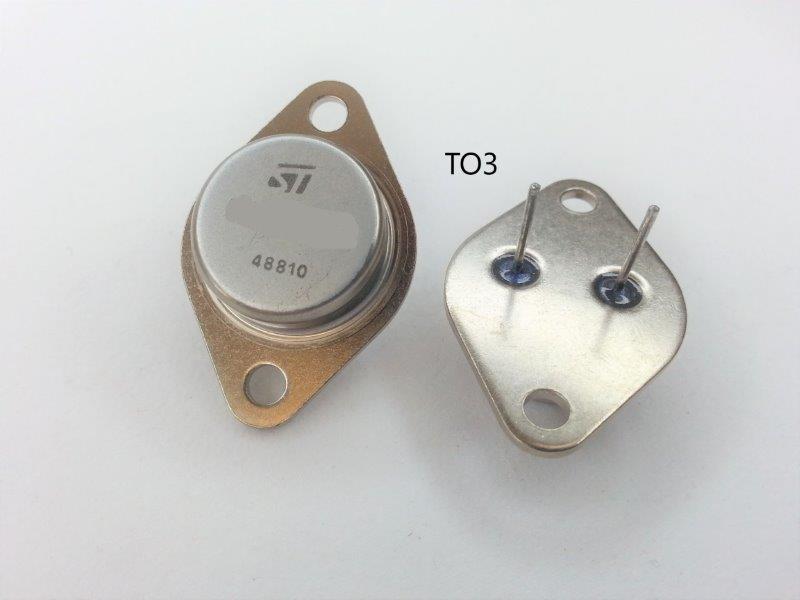

   Package: TO3
