BD136 Transistor
Marke
Diverse Hersteller

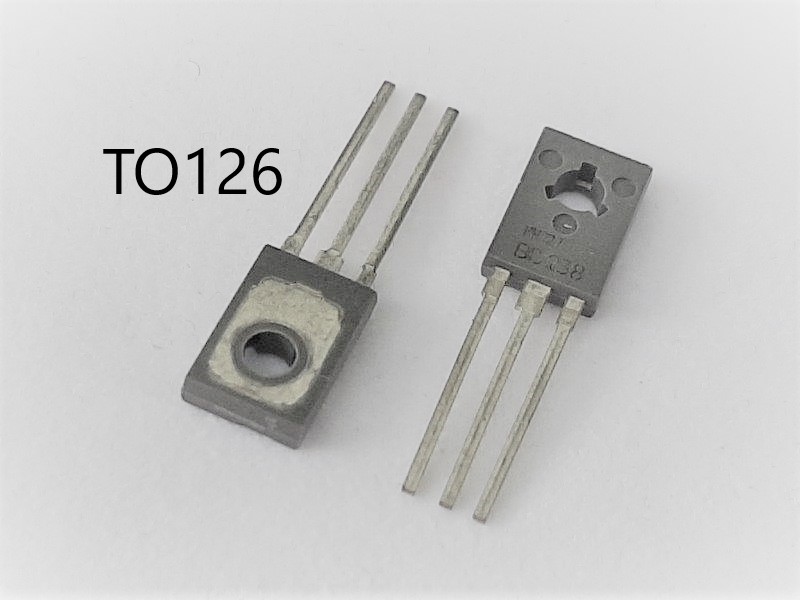

Form TO126
Form TO126
Plastic Medium-Power Silicon PNP Transistors
Maximum Collector Power Dissipation (Pc): 12 W
Maximum Collector-Base Voltage |Vcb|: 45 V
Maximum Collector-Emitter Voltage |Vce|: 45 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 1 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 50 MHz
Forward Current Transfer Ratio (hFE), MIN: 40
Maximum Collector Power Dissipation (Pc): 12 W
Maximum Collector-Base Voltage |Vcb|: 45 V
Maximum Collector-Emitter Voltage |Vce|: 45 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 1 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 50 MHz
Forward Current Transfer Ratio (hFE), MIN: 40
