BD433 Transistor
Marke
Telefunken

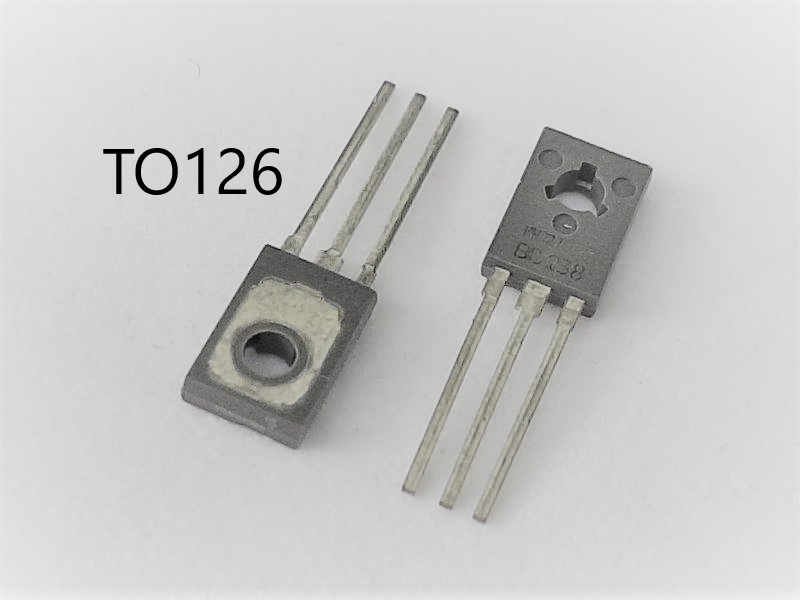

Form TO126
Form TO126
Plastic Medium-Power Silicon NPN Transistors
Maximum Collector Power Dissipation (Pc): 36 W
Maximum Collector-Base Voltage |Vcb|: 22 V
Maximum Collector-Emitter Voltage |Vce|: 22 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 4 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 3 MHz
Forward Current Transfer Ratio (hFE), MIN: 5
Maximum Collector Power Dissipation (Pc): 36 W
Maximum Collector-Base Voltage |Vcb|: 22 V
Maximum Collector-Emitter Voltage |Vce|: 22 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 4 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 3 MHz
Forward Current Transfer Ratio (hFE), MIN: 5
