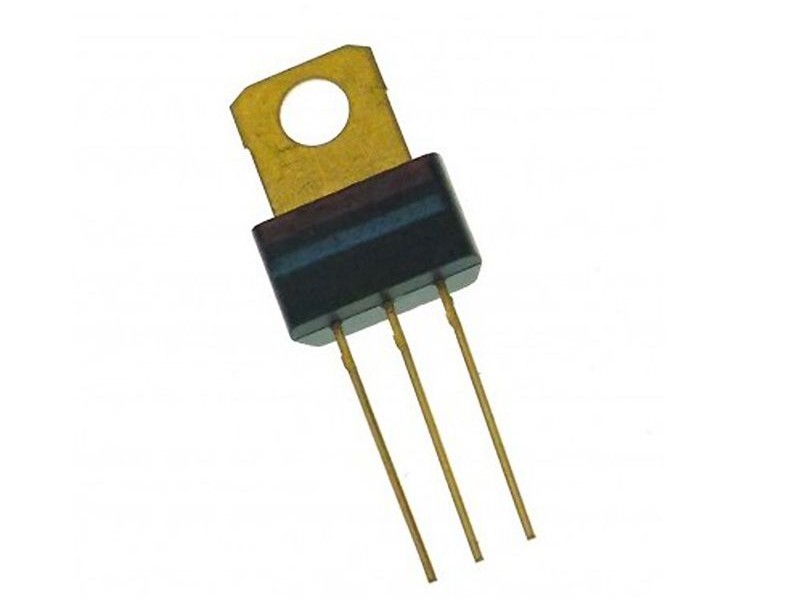

BD519 Transistor
Marke
Diverse Hersteller
Form TO202
Form TO202
An Lager 100
Transistor NPN
Maximum Collector Power Dissipation (Pc): 10
W
Maximum Collector-Base Voltage |Vcb|: 80 V
Maximum Collector-Emitter Voltage |Vce|: 80 V
Maximum Emitter-Base Voltage |Veb|: 4 V
Maximum Collector Current |Ic max|: 2 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 50 MHz
Forward Current Transfer Ratio (hFE), MIN: 6
Maximum Collector-Base Voltage |Vcb|: 80 V
Maximum Collector-Emitter Voltage |Vce|: 80 V
Maximum Emitter-Base Voltage |Veb|: 4 V
Maximum Collector Current |Ic max|: 2 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 50 MHz
Forward Current Transfer Ratio (hFE), MIN: 6
