BD54D Transistor
Marke
Diverse Hersteller

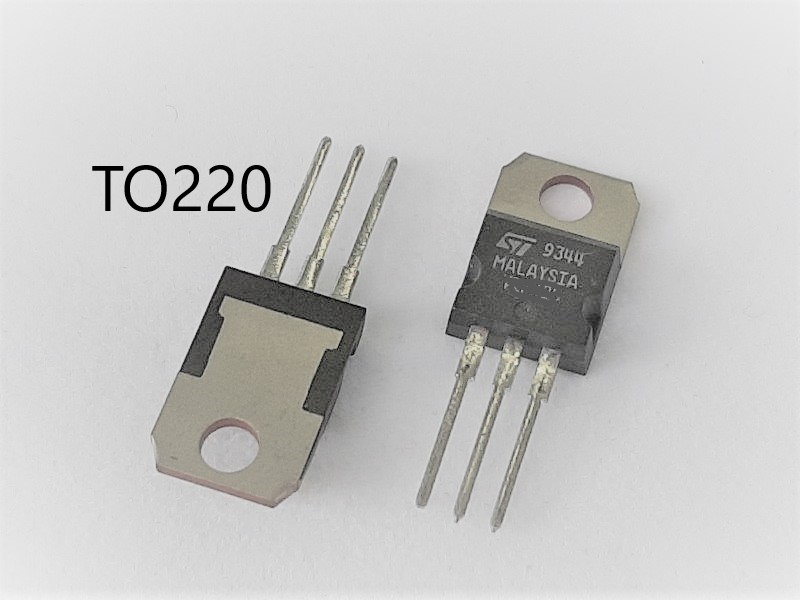

Form TO220
Form TO220
PNP SILICON POWER DARLINGTONS
Maximum Collector Power Dissipation (Pc): 40
W
Maximum Collector-Base Voltage |Vcb|: 120 V
Maximum Collector-Emitter Voltage |Vce|: 120 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 4 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 1 MHz
Forward Current Transfer Ratio (hFE), MIN: 750
Maximum Collector-Base Voltage |Vcb|: 120 V
Maximum Collector-Emitter Voltage |Vce|: 120 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 4 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 1 MHz
Forward Current Transfer Ratio (hFE), MIN: 750
