BFR15A Transistor

Marke  Diverse Hersteller

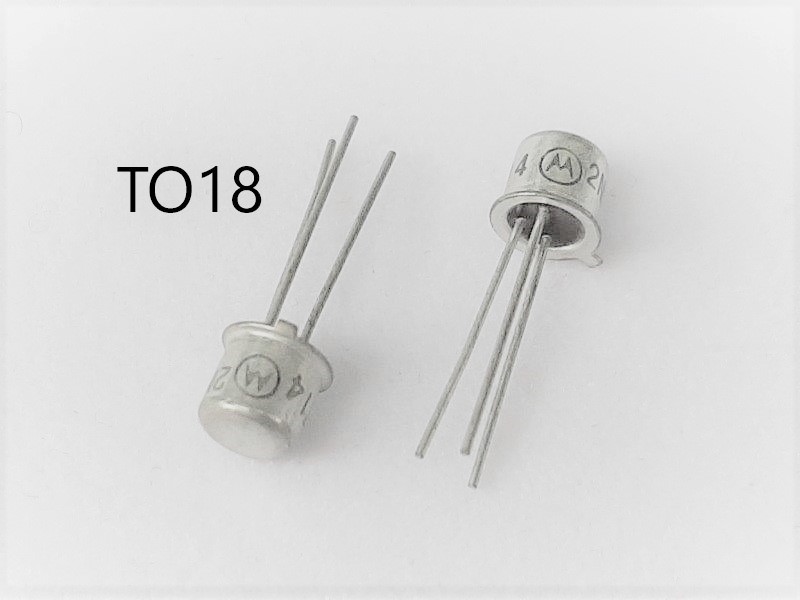

Form  TO18

Zurück

   Material of Transistor: Si
   Polarity: NPN
   Maximum Collector Power Dissipation (Pc): 0.2 W
   Maximum Collector-Base Voltage |Vcb|: 20 V
   Maximum Collector-Emitter Voltage |Vce|: 12 V
   Maximum Emitter-Base Voltage |Veb|: 2 V
   Maximum Collector Current |Ic max|: 0.03 A
   Max. Operating Junction Temperature (Tj): 150 °C
   Transition Frequency (ft): 2200 MHz
   Forward Current Transfer Ratio (hFE), MIN: 25
   Noise Figure, dB: -
   Package: TO72
